BlindBot

Parts gallery

Every STL in hardware/stl, each in its own 3D viewer, as exported for printing (Z up = away from the bed). Bounding box, volume and triangle count are measured from the meshes when the site is built. Material and orientation follow ASSEMBLY.md and the print plan; print settings are starting points, not values tested on this design.

Fit is unverified. The knob, rod and clip dimensions behind these parts are estimated from photo, not caliper. Print the clip rail and a cup + liner as fit tests before anything else.

Jump to: Head (primary design, one per window) · Controller box (one per pair of windows) · Pane pack (version C) · Installation · Alternatives, fallbacks and obsolete parts

Head (primary design, one per window)

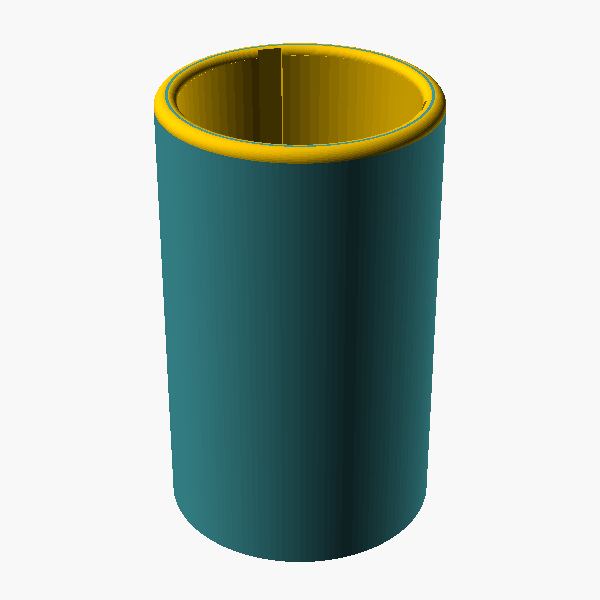

OpenSCAD render of Knob cup

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Knob cup primary

Size
20.1 × 20.1 × 33.0 mm
Volume
4.76 cm³ (≈ 6.0 g solid PETG)
Material
PETG, matt white
Orientation
As exported: clutch-bore end down, mouth up.
Versions
ABC

Details · STL (448 KB)

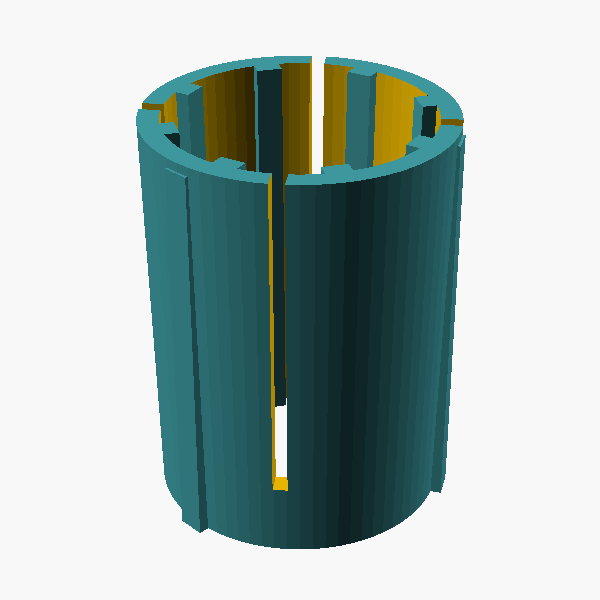

OpenSCAD render of TPU liner

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

TPU liner primary

Size
16.8 × 16.8 × 22.0 mm
Volume
1.37 cm³ (≈ 1.7 g solid TPU)
Material
TPU 95A
Orientation
Upright as exported, solid 4 mm ring end down.
Versions
ABC

Details · STL (50 KB)

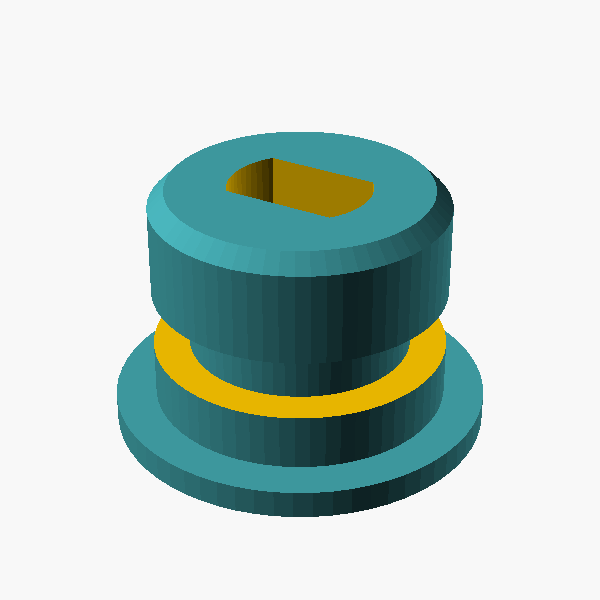

OpenSCAD render of Drive hub / O-ring clutch

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Drive hub / O-ring clutch primary

Size
13.5 × 13.5 × 9.0 mm
Volume
0.62 cm³ (≈ 0.8 g solid PETG)
Material
PETG
Orientation
Flange down, as exported (D-bore vertical).
Versions
ABC

Details · STL (82 KB)

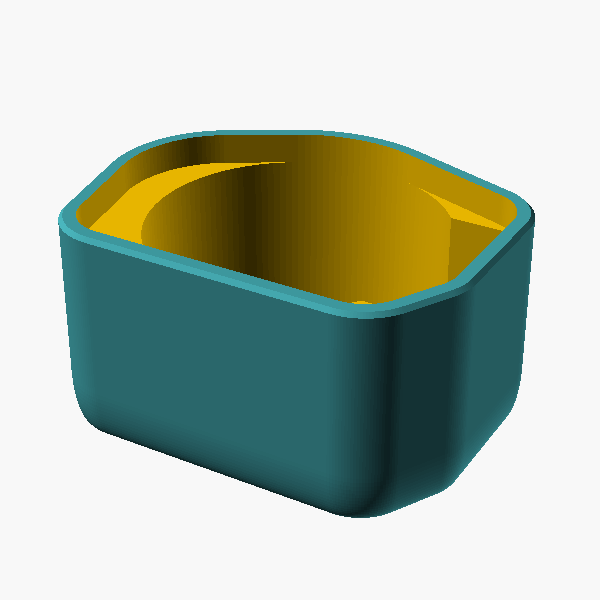

OpenSCAD render of Housing base

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Housing base primary

Size
40.1 × 31.9 × 21.1 mm
Volume
8.35 cm³ (≈ 10.6 g solid PETG)
Material
PETG or ASA (UV / heat near the glass)
Orientation
Bottom down (flat underside on the bed).
Versions
ABC

Details · STL (413 KB)

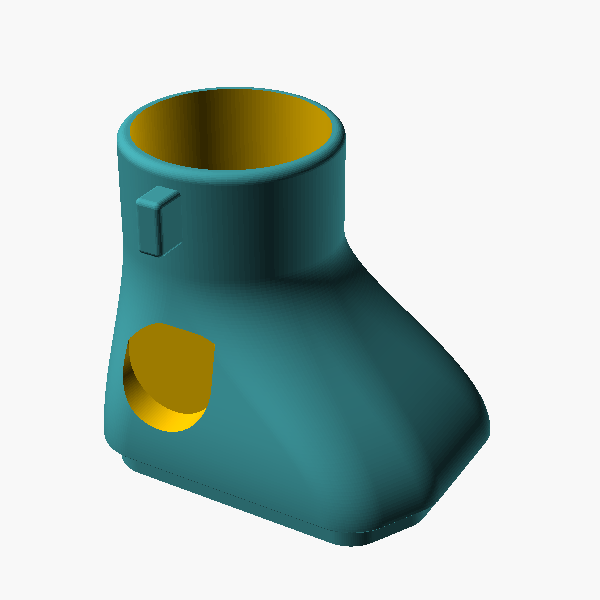

OpenSCAD render of Housing lid (collar)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Housing lid (collar) primary

Size
40.1 × 31.9 × 36.4 mm
Volume
10.38 cm³ (≈ 13.2 g solid PETG)
Material
PETG or ASA
Orientation
Collar up, spigot down.
Versions
ABC

Details · STL (1.1 MB)

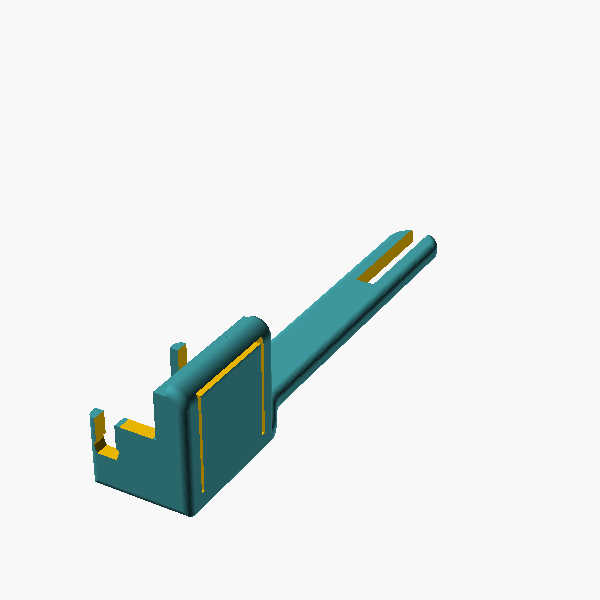

OpenSCAD render of Anti-rotation clip rail (piece 1 of 2)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Anti-rotation clip rail (piece 1 of 2) primary

Size
17.8 × 94.4 × 21.9 mm
Volume
3.87 cm³ (≈ 4.9 g solid PETG)
Material
PETG
Orientation
As exported: frame-face (back) side on the bed.
Versions
ABC

Details · STL (342 KB)

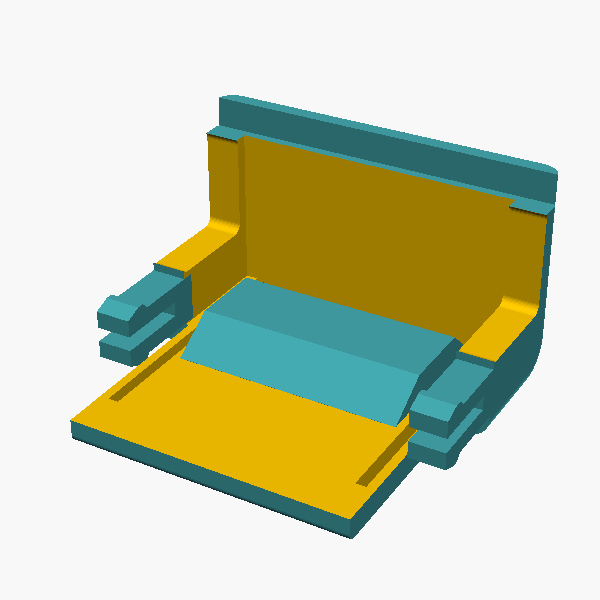

OpenSCAD render of Anti-rotation clip latch (piece 2 of 2)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Anti-rotation clip latch (piece 2 of 2) primary

Size
24.1 × 21.9 × 14.2 mm
Volume
1.55 cm³ (≈ 2.0 g solid PETG)
Material
PETG
Orientation
As exported: left outside face on the bed (the snap prongs and the side tongue then flex in the layer plane).
Versions
ABC

Details · STL (125 KB)

Controller box (one per pair of windows)

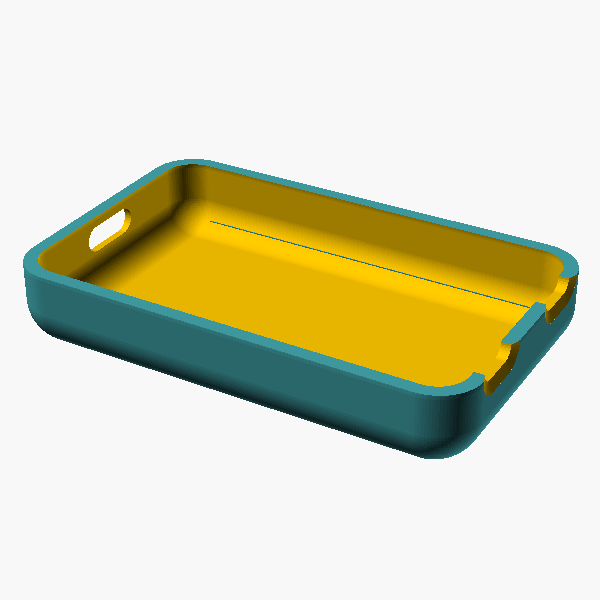

OpenSCAD render of Controller box base, version A (USB-C)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Controller box base, version A (USB-C) primary

Size
63.1 × 39.6 × 11.4 mm
Volume
6.81 cm³ (≈ 8.7 g solid PETG)
Material
PETG
Orientation
Base bottom down.
Versions
A

Details · STL (600 KB)

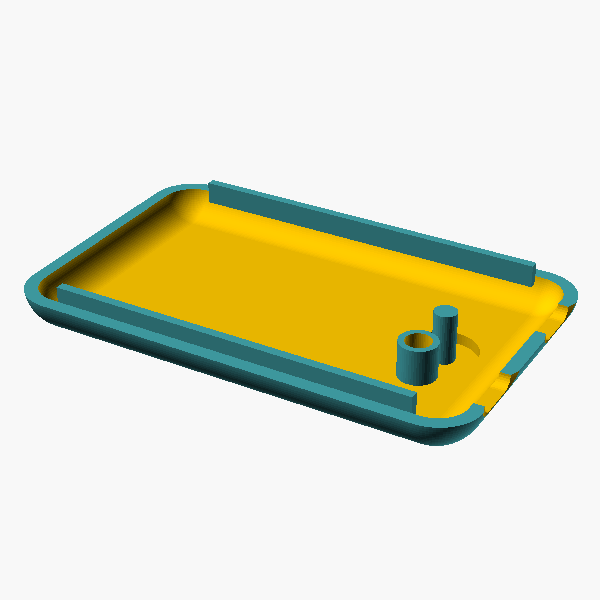

OpenSCAD render of Controller box lid, version A

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Controller box lid, version A primary

Size
63.0 × 39.5 × 7.3 mm
Volume
5.18 cm³ (≈ 6.6 g solid PETG)
Material
PETG
Orientation
As exported, top on the bed: the 0.6 mm button / LED skins are the first layers.
Versions
A

Details · STL (537 KB)

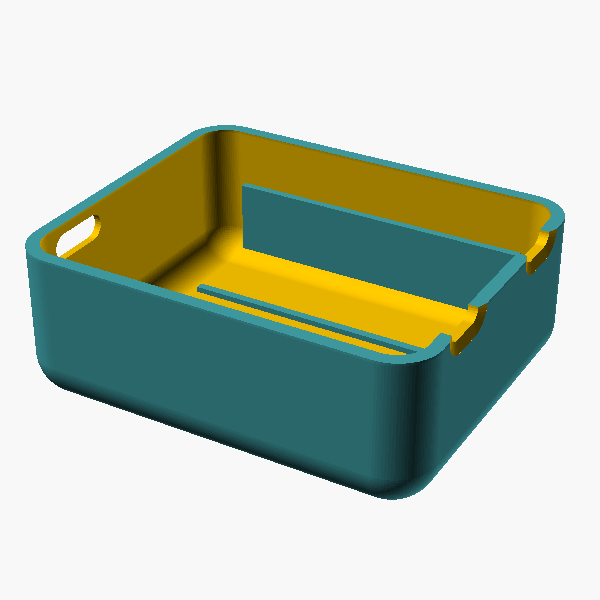

OpenSCAD render of Controller box base, version B (battery)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Controller box base, version B (battery) primary

Size
57.6 × 47.6 × 21.7 mm
Volume
11.92 cm³ (≈ 15.1 g solid PETG)
Material
PETG
Orientation
Base bottom down.
Versions
B

Details · STL (588 KB)

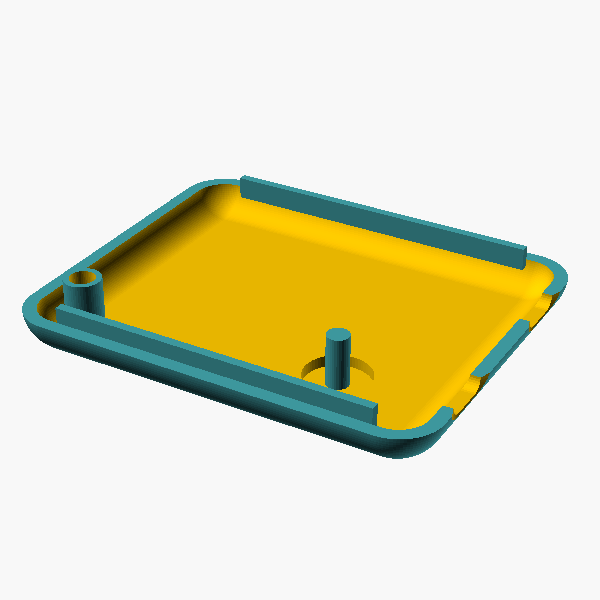

OpenSCAD render of Controller box lid, version B

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Controller box lid, version B primary

Size
57.6 × 47.6 × 8.0 mm
Volume
5.68 cm³ (≈ 7.2 g solid PETG)
Material
PETG
Orientation
As exported, top on the bed.
Versions
B

Details · STL (559 KB)

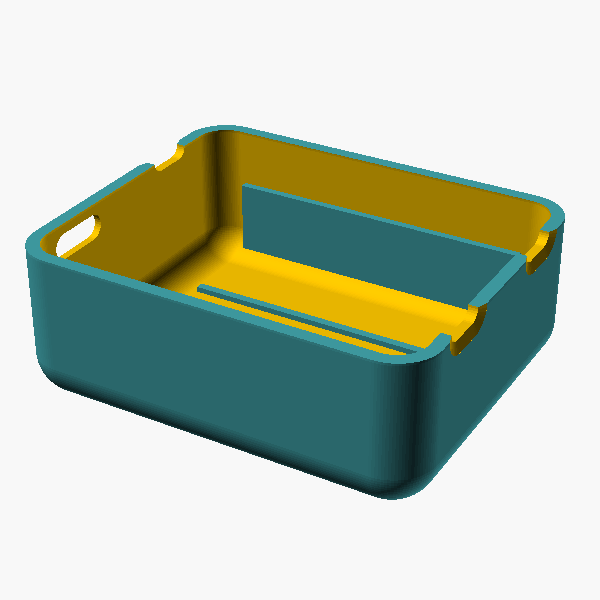

OpenSCAD render of Controller box base, version C (solar)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Controller box base, version C (solar) primary

Size
57.6 × 47.6 × 21.7 mm
Volume
11.90 cm³ (≈ 15.1 g solid PETG)
Material
PETG
Orientation
Base bottom down.
Versions
C

Details · STL (595 KB)

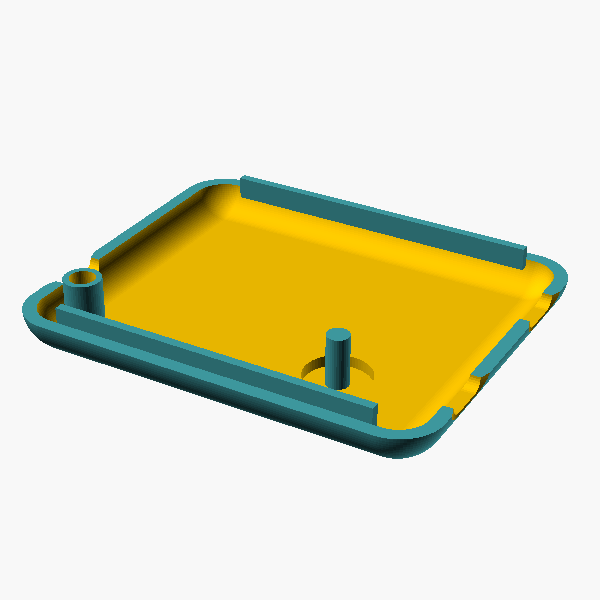

OpenSCAD render of Controller box lid, version C

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Controller box lid, version C primary

Size
57.6 × 47.6 × 8.0 mm
Volume
5.66 cm³ (≈ 7.2 g solid PETG)
Material
PETG
Orientation
As exported, top on the bed.
Versions
C

Details · STL (568 KB)

Pane pack (version C)

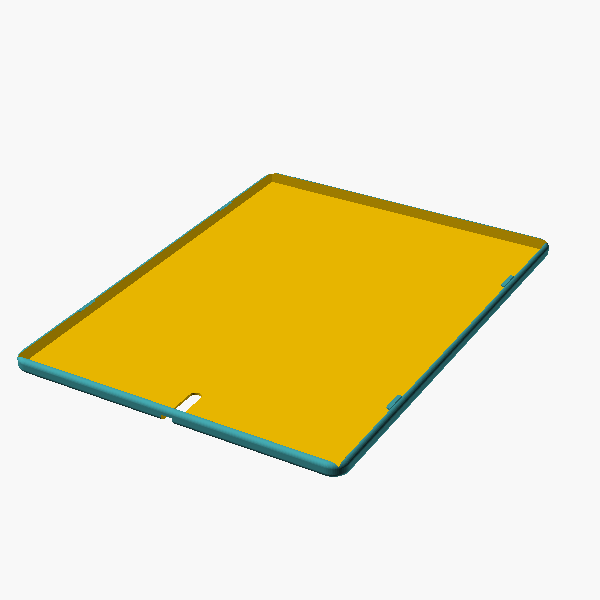

OpenSCAD render of Pane pack, panel only (recommended)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Pane pack, panel only (recommended) primary

Size
87.8 × 117.8 × 4.1 mm
Volume
7.40 cm³ (≈ 7.9 g solid ASA)
Material
ASA (or PETG)
Orientation
As exported: back down, snap hooks on top.
Versions
C

Details · STL (276 KB)

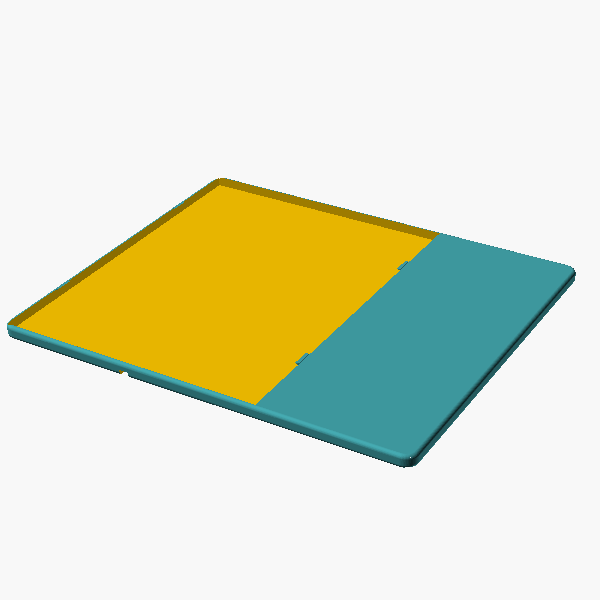

OpenSCAD render of Pane pack with cell (legacy)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Pane pack with cell (legacy) option

Size
134.4 × 117.8 × 4.6 mm
Volume
21.93 cm³ (≈ 23.5 g solid ASA)
Material
ASA (or PETG)
Orientation
Back down.
Versions
C

Details · STL (267 KB)

OpenSCAD render of Pane pack cell cover (legacy)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Pane pack cell cover (legacy) option

Size
46.2 × 79.2 × 0.6 mm
Volume
2.19 cm³ (≈ 2.3 g solid ASA)
Material
ASA (or PETG)
Orientation
Flat as exported.
Versions
C

Details · STL (133 KB)

Installation

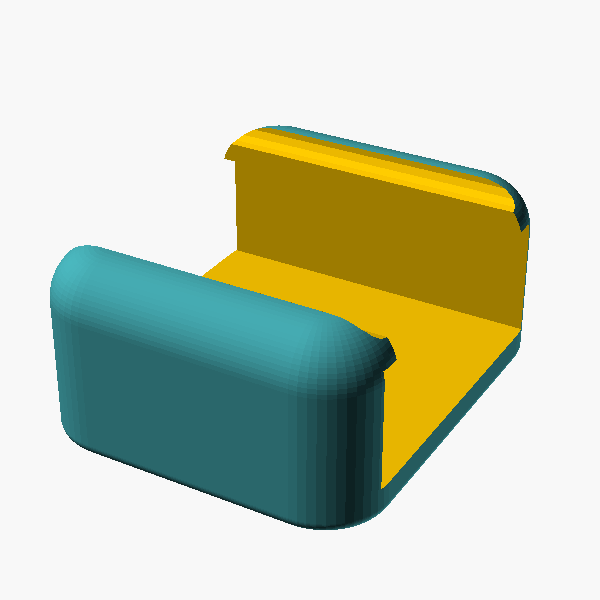

OpenSCAD render of Cable clip

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Cable clip primary

Size
8.0 × 9.6 × 4.5 mm
Volume
0.12 cm³ (≈ 0.2 g solid PETG)
Material
PETG
Orientation
Flat side down.
Versions
ABC

Details · STL (199 KB)

Alternatives, fallbacks and obsolete parts

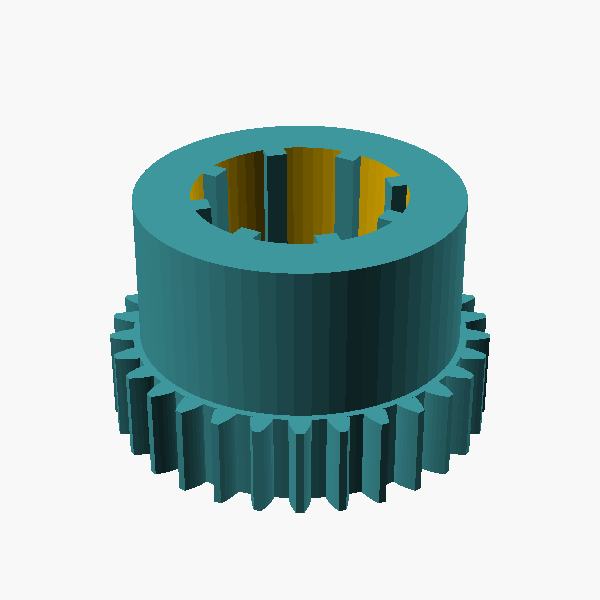

OpenSCAD render of Offset gear drive: ring gear

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Offset gear drive: ring gear fallback

Size
25.6 × 25.5 × 16.0 mm
Volume
4.37 cm³ (≈ 5.5 g solid PETG)
Material
PETG
Orientation
Gear face down as exported.
Versions
ABC

Details · STL (181 KB)

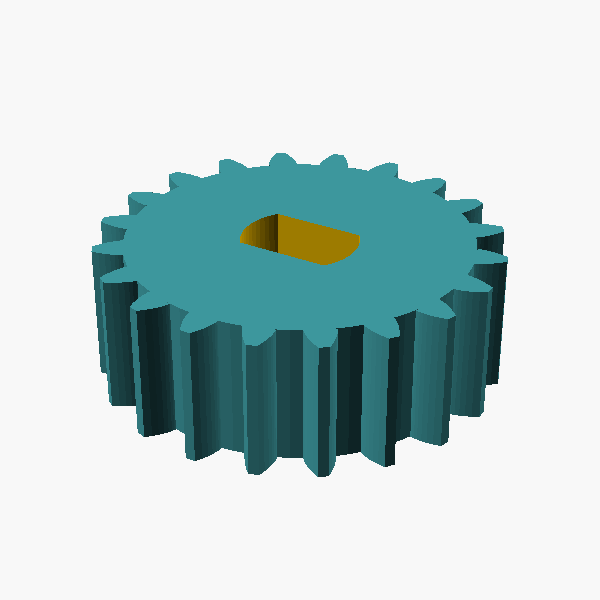

OpenSCAD render of Offset gear drive: pinion

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Offset gear drive: pinion fallback

Size
17.6 × 17.6 × 6.0 mm
Volume
1.13 cm³ (≈ 1.4 g solid PETG)
Material
PETG
Orientation
Flat.
Versions
ABC

Details · STL (96 KB)

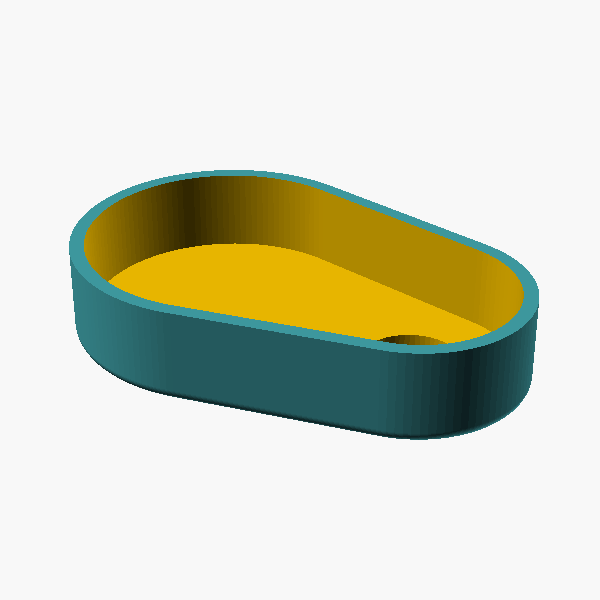

OpenSCAD render of Offset gear drive: cover base

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Offset gear drive: cover base fallback

Size
46.4 × 30.4 × 9.4 mm
Volume
2.73 cm³ (≈ 3.5 g solid PETG)
Material
PETG
Orientation
Tray, open side up.
Versions
ABC

Details · STL (295 KB)

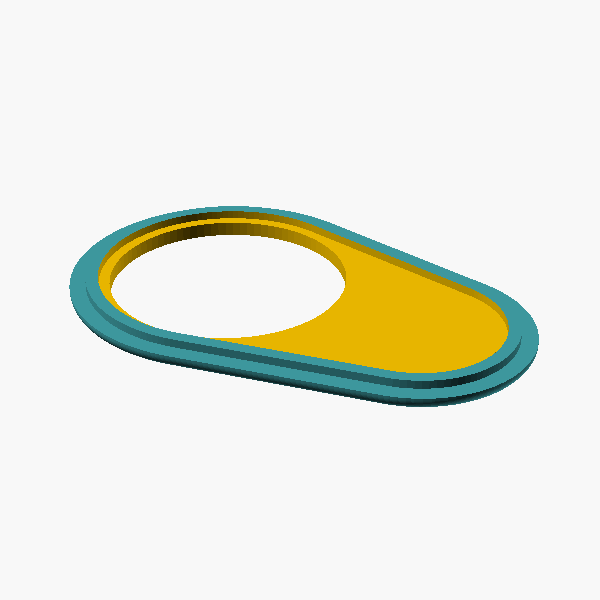

OpenSCAD render of Offset gear drive: cover lid

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Offset gear drive: cover lid fallback

Size
46.4 × 30.4 × 2.2 mm
Volume
1.03 cm³ (≈ 1.3 g solid PETG)
Material
PETG
Orientation
As exported (top down).
Versions
ABC

Details · STL (326 KB)

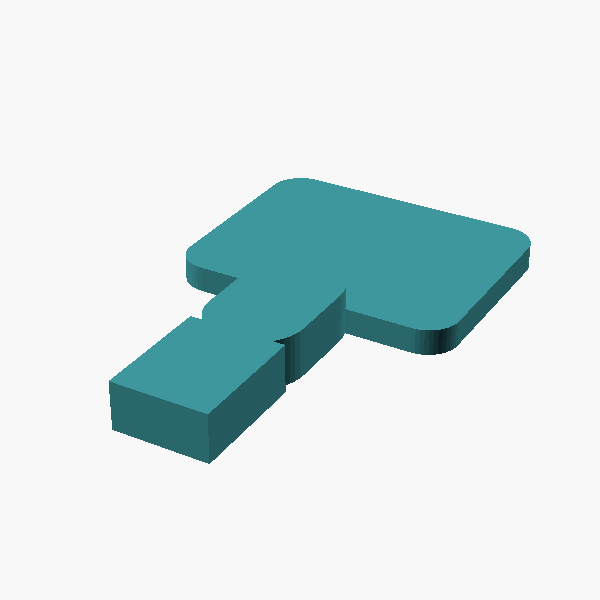

OpenSCAD render of Face tab (last resort)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Face tab (last resort) last resort

Size
18.0 × 28.5 × 3.0 mm
Volume
0.67 cm³ (≈ 0.8 g solid PETG)
Material
PETG
Orientation
Flat as exported (pad on the bed).
Versions
ABC

Details · STL (19 KB)

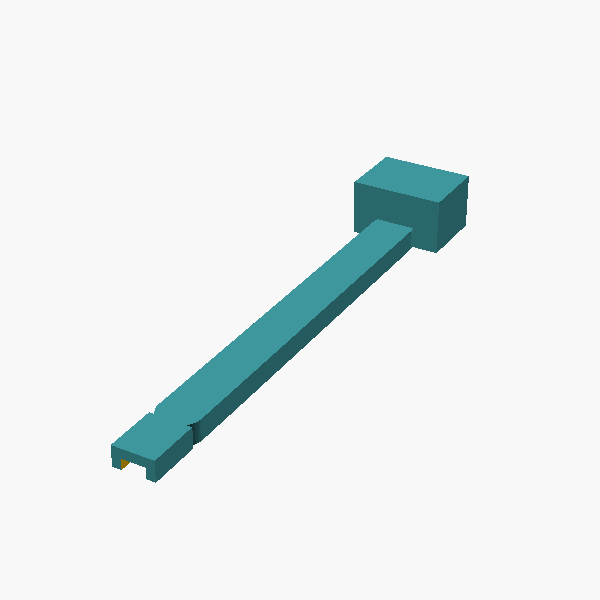

OpenSCAD render of Tail hook (obsolete)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Tail hook (obsolete) obsolete

Size
13.4 × 74.5 × 8.0 mm
Volume
1.62 cm³ (≈ 2.1 g solid PETG)
Material
PETG
Orientation
Flat as exported.
Versions
ABC

Details · STL (7 KB)

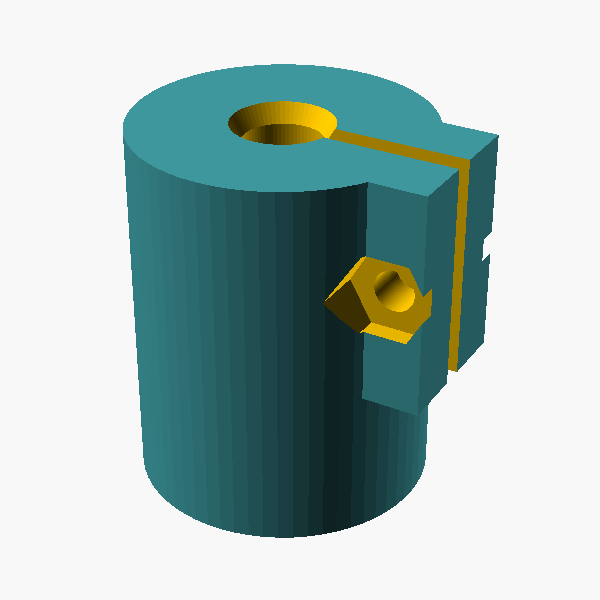

OpenSCAD render of Collet coupler (secondary concept)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Collet coupler (secondary concept) secondary

Size
18.0 × 16.0 × 20.0 mm
Volume
3.81 cm³ (≈ 4.8 g solid PETG)
Material
PETG
Orientation
D-bore end down.
Versions
ABC

Details · STL (83 KB)

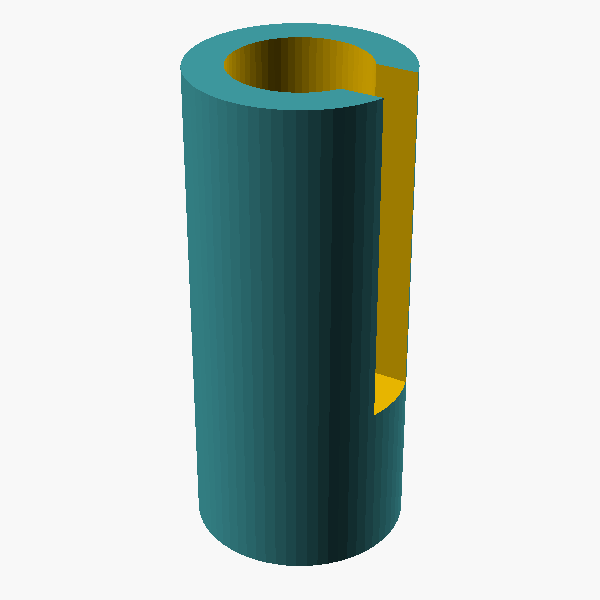

OpenSCAD render of TPU sleeve coupler (secondary concept)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

TPU sleeve coupler (secondary concept) secondary

Size
10.5 × 10.5 × 24.0 mm
Volume
1.32 cm³ (≈ 1.7 g solid PETG)
Material
PETG
Orientation
Upright.
Versions
ABC

Details · STL (29 KB)

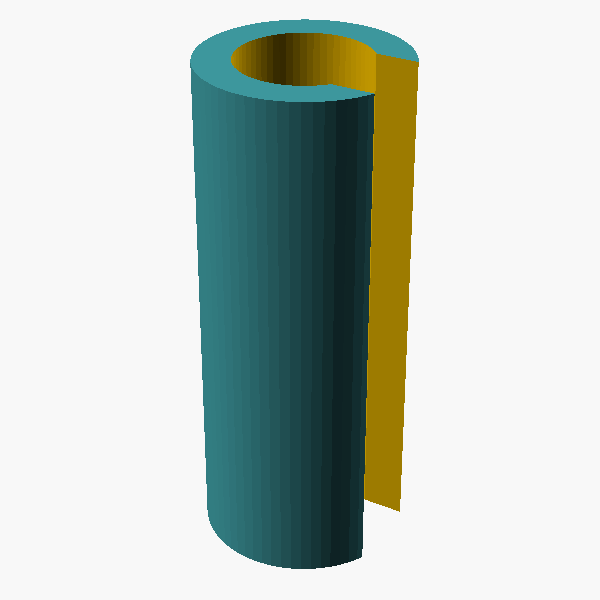

OpenSCAD render of TPU sleeve liner (secondary concept)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

TPU sleeve liner (secondary concept) secondary

Size
6.2 × 6.5 × 16.0 mm
Volume
0.26 cm³ (≈ 0.3 g solid TPU)
Material
TPU 95A
Orientation
Upright.
Versions
ABC

Details · STL (21 KB)

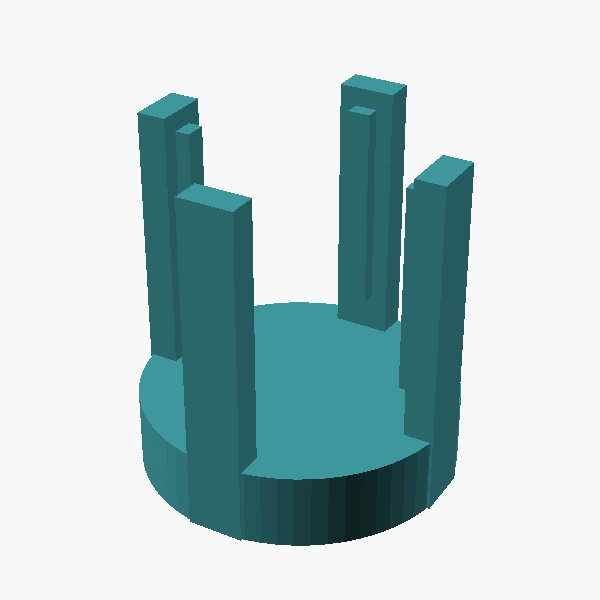

OpenSCAD render of Fork claw coupler (secondary concept)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Fork claw coupler (secondary concept) secondary

Size
16.8 × 16.8 × 18.0 mm
Volume
1.15 cm³ (≈ 1.5 g solid PETG)
Material
PETG
Orientation
Base down.
Versions
ABC

Details · STL (24 KB)

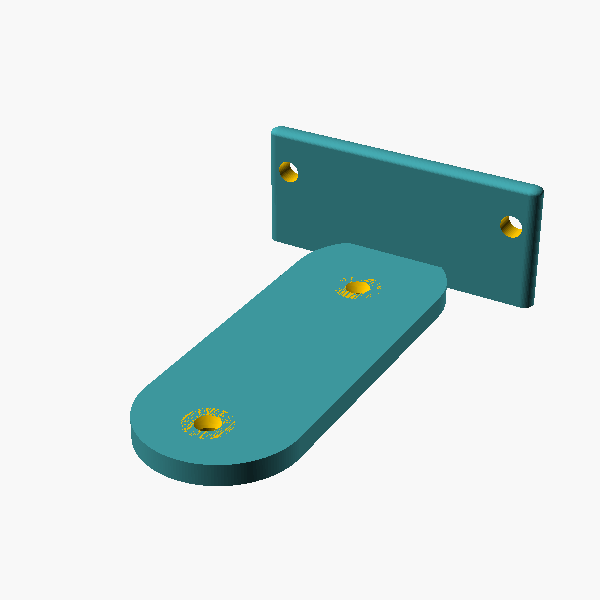

OpenSCAD render of Frame bracket (secondary concept)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

Frame bracket (secondary concept) secondary

Size
42.2 × 60.0 × 18.0 mm
Volume
5.63 cm³ (≈ 7.2 g solid PETG)
Material
PETG
Orientation
Plate down.
Versions
ABC

Details · STL (209 KB)

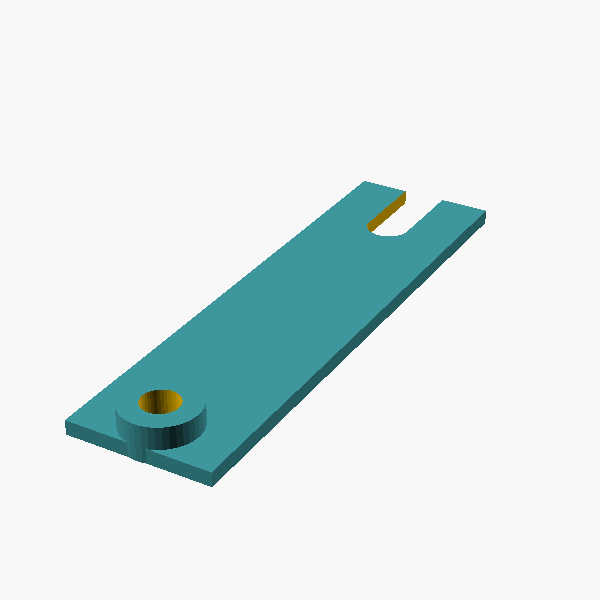

OpenSCAD render of No-holes clip (secondary concept)

Drag to orbit · pinch / scroll to zoom · two fingers / right-drag to pan. Shown as exported for printing, on a 10 mm grid.

No-holes clip (secondary concept) secondary

Size
12.0 × 44.1 × 3.0 mm
Volume
0.63 cm³ (≈ 0.8 g solid PETG)
Material
PETG
Orientation
Flat.
Versions
ABC

Details · STL (21 KB)
