3D model

The head on the existing knob, the clip rail on the rod guide clip, the controller box and (version C) the pane pack. The head and the window dummies are placed exactly as in hardware/cad/assembly_preview.scad (checked against OpenSCAD's own export); the box and the pane pack are placed for the picture only.

A · USB-C B · battery C · solar

Exploded Explode Reset view

Loading the 3D model… Then tap or click a part to see what it is, its material and how to print it.

Head (one per window) show / hide

• TPU liner
• Knob cup
• Drive hub / O-ring clutch
• Housing lid (collar)
• 28BYJ-48 motor (dummy, bought part)
• Housing base
• Anti-rotation clip rail (rail + back of the hood)
• Anti-rotation clip latch (front of the hood)

Controller box (one per 2 heads) show / hide

• Controller box base (C, solar)
• Controller box lid (C, solar)

Pane pack (version C) show / hide

• Pane pack, panel only (C)

Window (existing, dummy) show / hide

• Existing fluted tilt knob + rod (dummy)
• Frame face (dummy)
• Hinge barrel (dummy)
• Rod guide clip (dummy)
• Rod ferrule (dummy)
• Lift cord (dummy)

Drag to orbit · pinch or scroll to zoom · two fingers or right-drag to pan · tap a part for details. Units mm; the frame, hinge, clip and cord are dummies drawn from photo estimates (estimated from photo, not caliper).

How the pieces fit

• Head: the cup (with its TPU liner) slides up over the fluted knob; the motor turns it through the O-ring clutch on the drive hub; base and lid enclose the motor. The lid's key rides in the fork of the clip rail, so the head cannot spin.
• Controller box: one box drives both heads over 6-wire flat cable. A is the smallest (USB-C only); B and C add the LiPo under the board.
• Pane pack (C): the 12 V panel stands between the panes, facing out; its lead runs to the box.

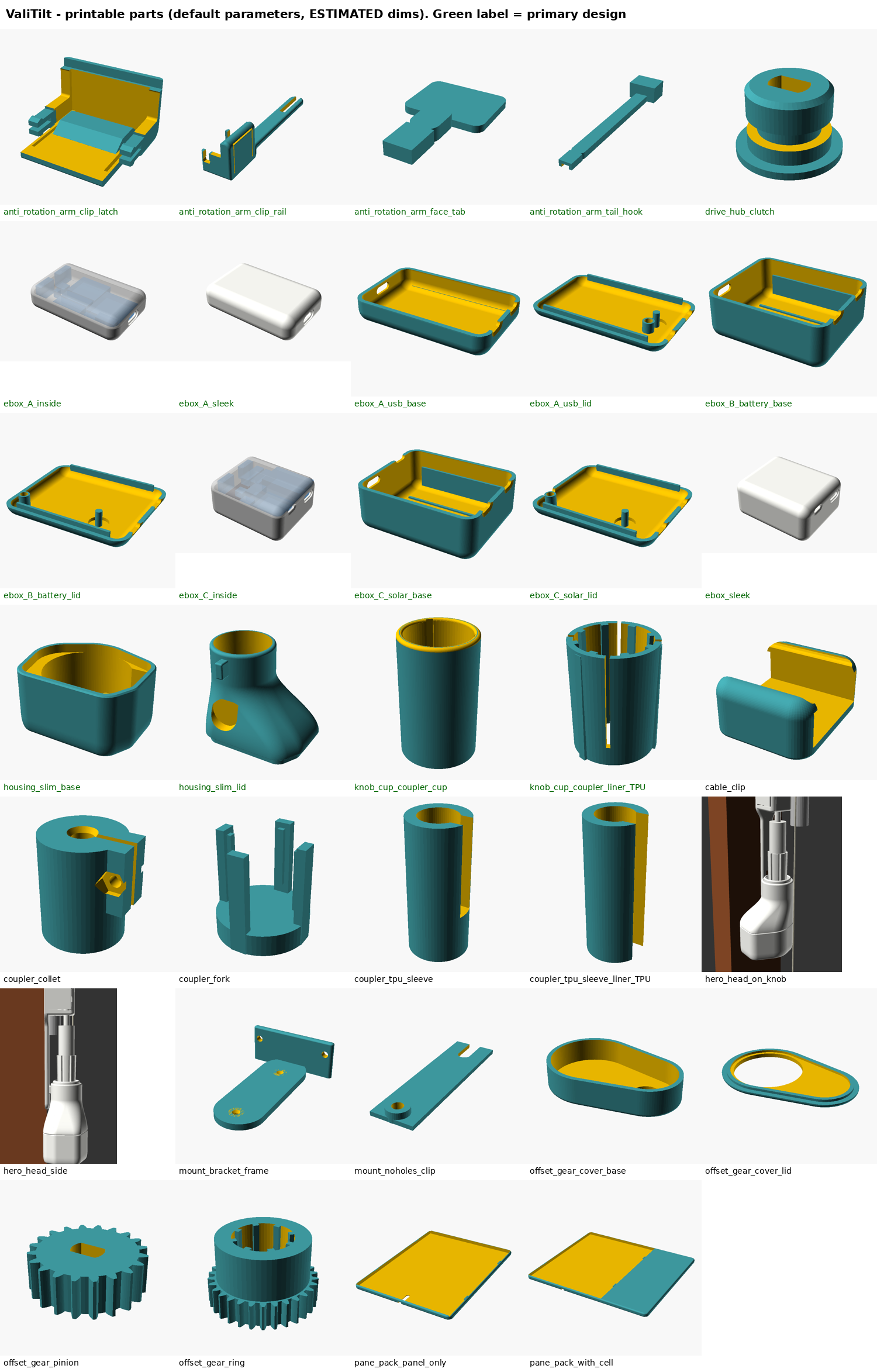

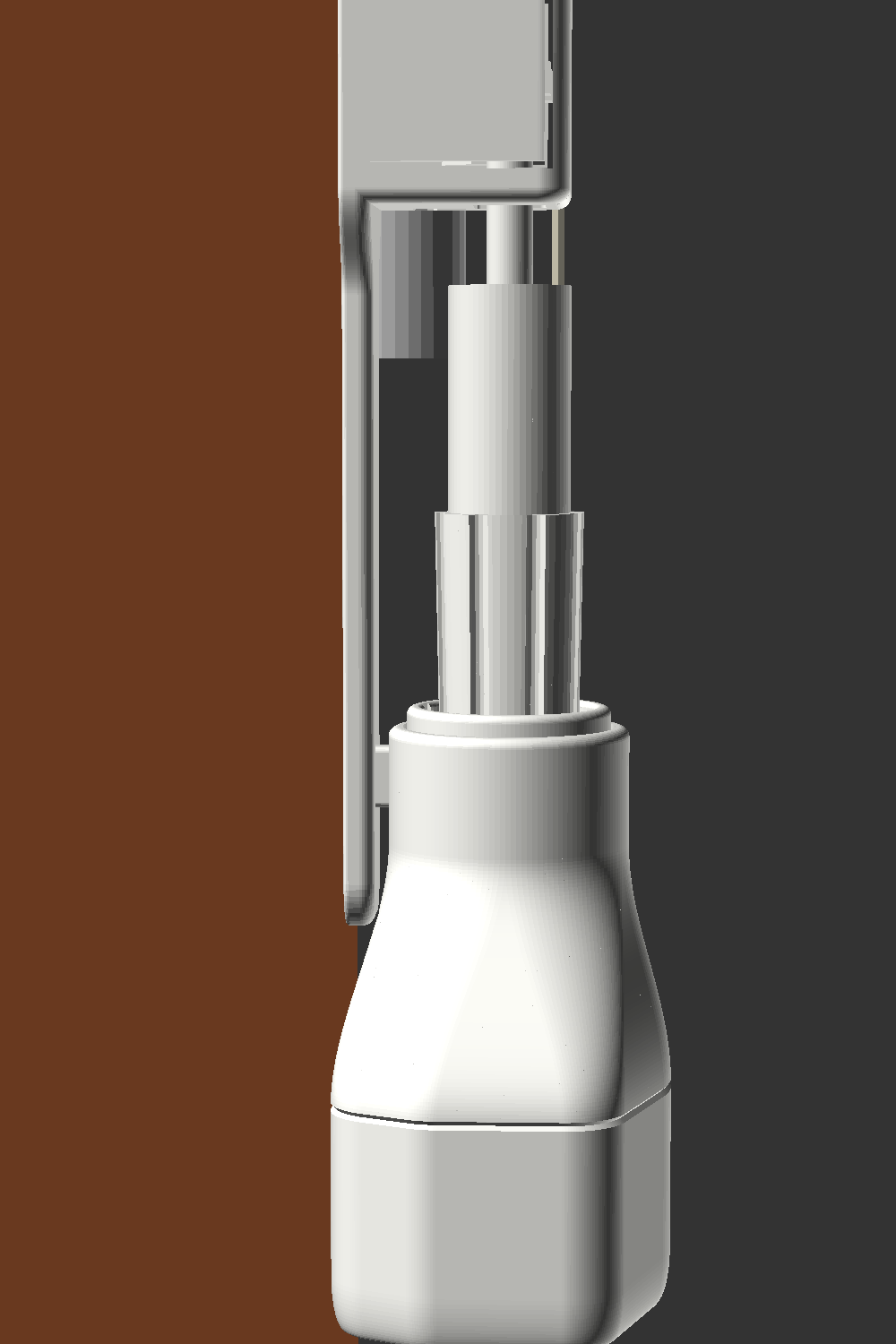

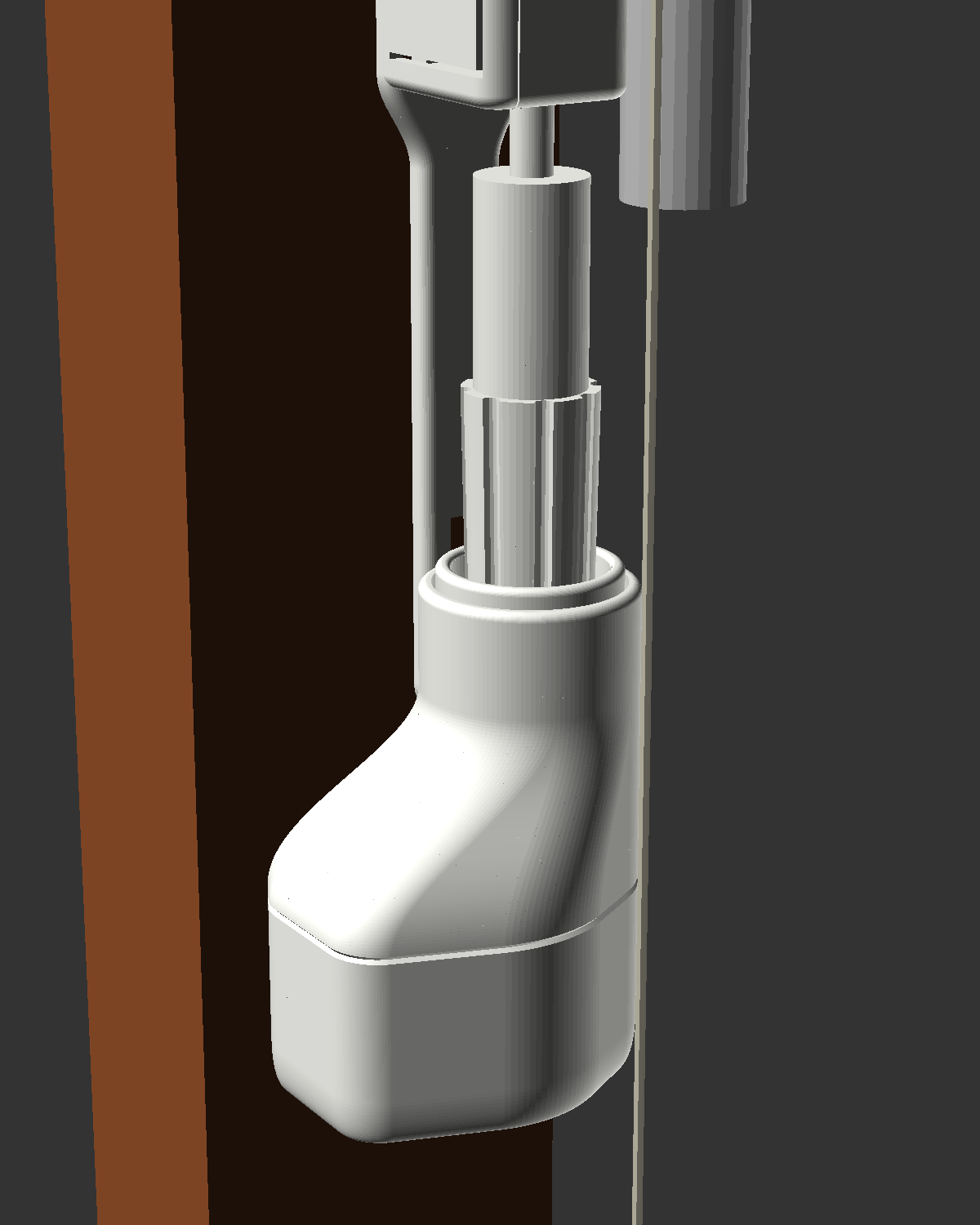

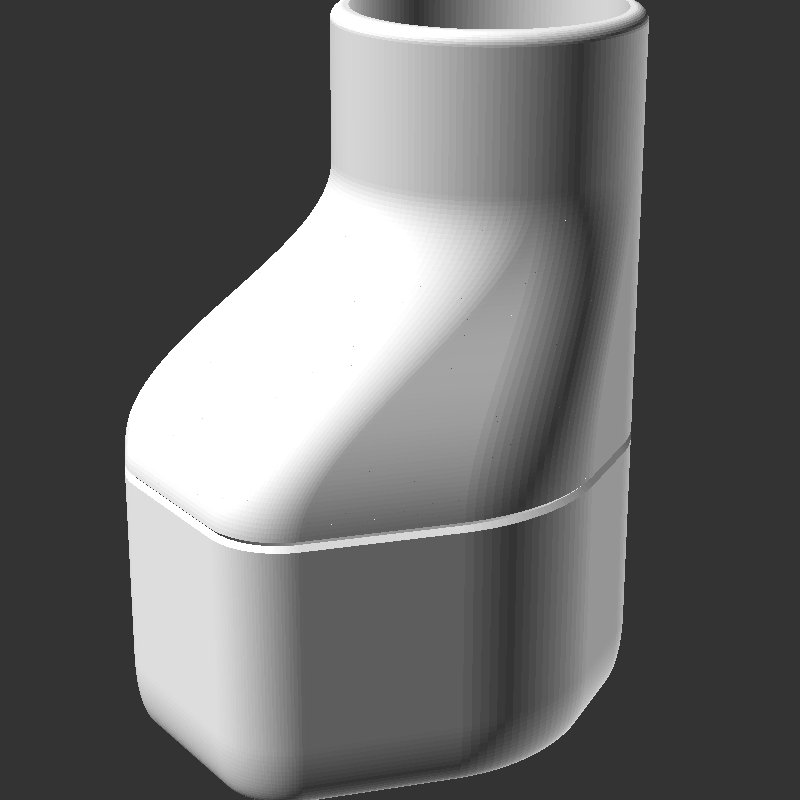

Every part has its own viewer in the parts gallery. Static renders: hero, side, cutaway, contact sheet.
